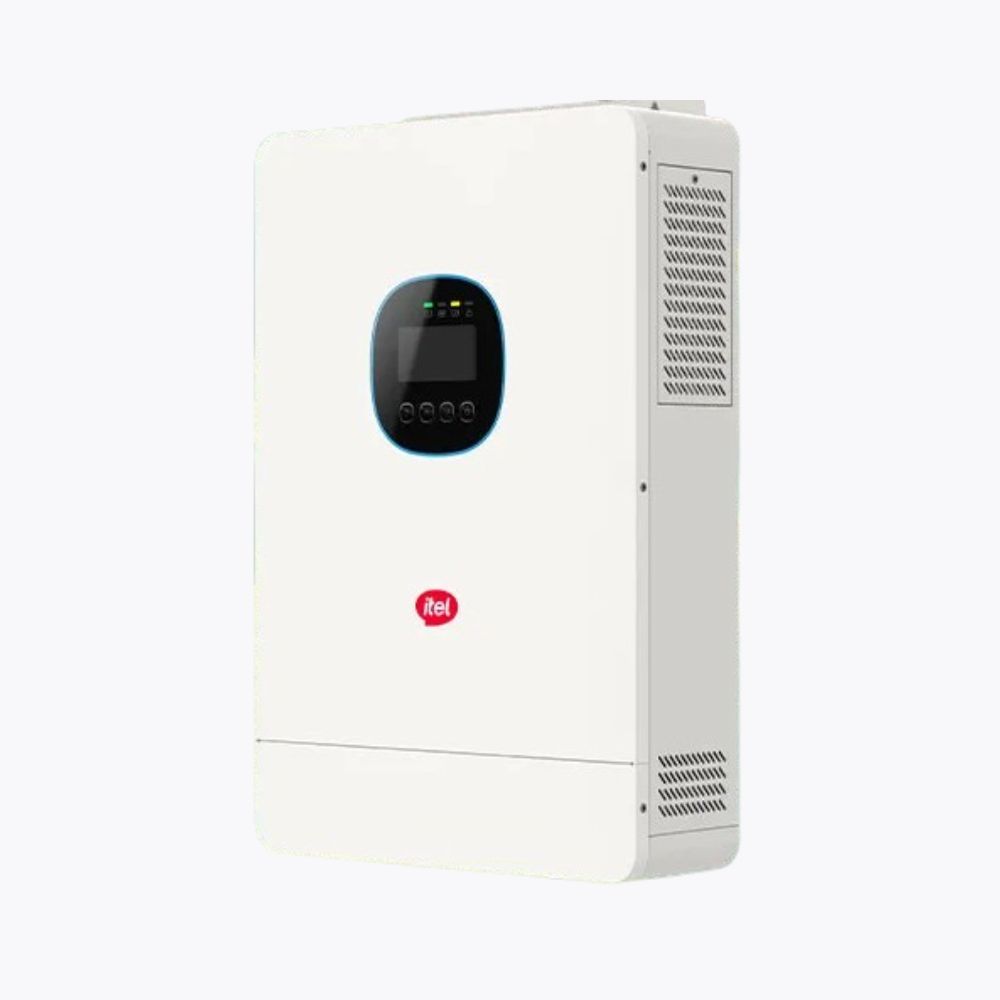

itel Hybrid Inverter (IP31) IPV-3K624S
₨ 0
In stock
3.6 kW
High Efficiency
MPPT Tracking Efficiency 99.5%
Battery Mode Conversion Efficiency 92%
Powerful Performance
102%<Load<110%, 60s
110%<Load<130%, 10s
130%<Load<150%, 3s
Max Grid Input Voltage 380V
Intelligent Load Recognition
Intellgient Power Controll Algorithm,
Self-adapting to Household Appliances
Saving Boost
Max. Charging Current up to 100A,
Fully Charged Rapidly
Max. Discharging Current up to 156A,
Run in Back Up Mode, Reduce Electricity Bill
Datasheet
Series | IP31 Series |
Model | IPV-3K624S |
Protection | IP31 |
Rated Output Power | 3.6 kW |
PV Input Power | 5000W |
Battery Voltage | 24V |
Battery Ampere | 100 A |
Battery Type | Lithium/Lead Acid |
Warranty | 2 Year Replacement Warranty |
Physical
Weight | 6.4kg |
Dimension | 95*285*420 (mm) |
Communication Interface | RS485/RS232 |
Additional information
Weight | 68066226 kg |
---|
Be the first to review “itel Hybrid Inverter (IP31) IPV-3K624S” Cancel reply
Reviews
There are no reviews yet.
