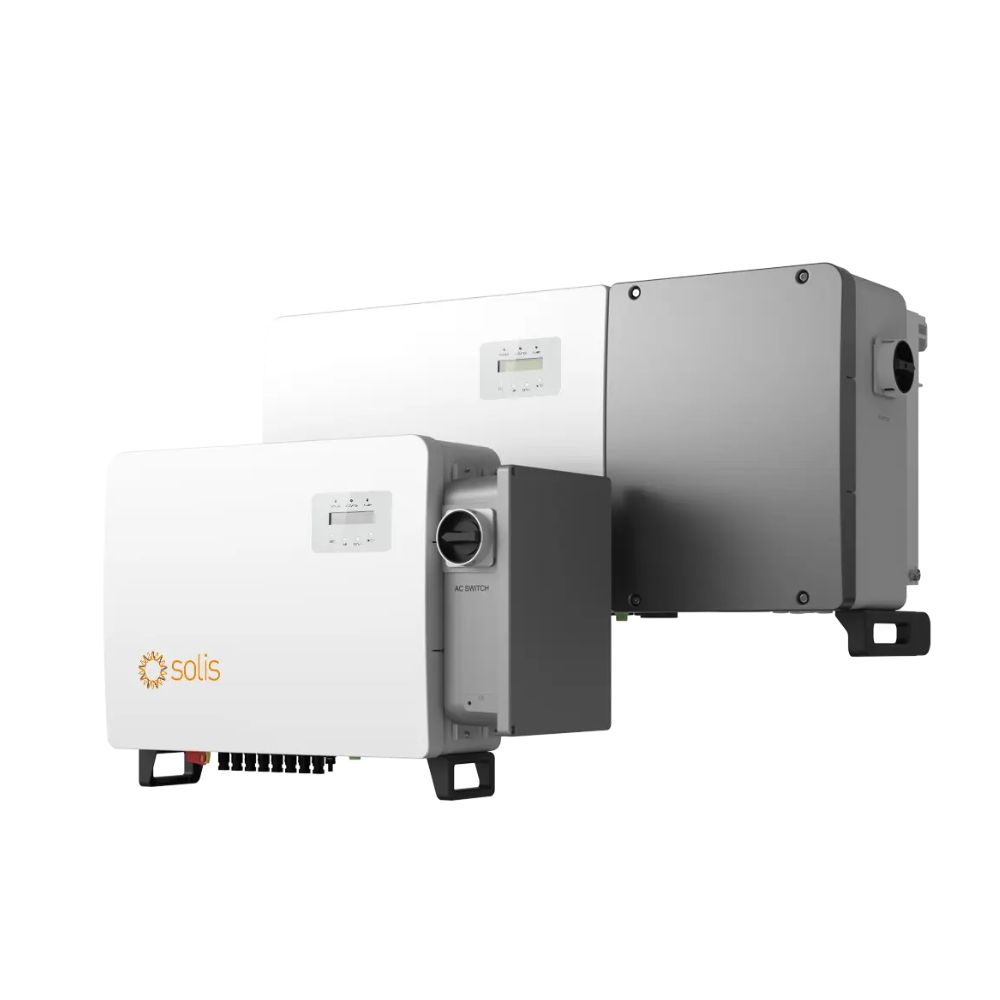

S6-GC30K-LV-US / S5-GC60K-LV-US
In stock
- Inputs up to 16A (60K) and 20A (30K)
- Over 1.5 DC/AC ratio for greater power density
- Integrated MC4 connections and spring clamp terminals ensure faster install times while also ensuring cables are properly secured
- Increase performance yields with wide and low startup voltage ranges
- Flexible communication protocols like RS485, Ethernet, WiFi, Cellular
- Proactively reduce fire risk with built-in AFCI protection
- Intelligent string-level monitoring with remote I-V curve scan
- Integrated transmitter options help choose the right solution for your project
- Multiple orientation design is supported with flexible MPPT and power class options
- Fuse Free Design reduces failure points and ensures seamless, ongoing operation
- Supported with the free SolisCloud, for remote updates, visualization and control
- Nighttime PID recovery function increases overall system yield and mitigates module degradation
Inverter Datasheet
Model | S6-GC30K-LV-US |
Rated Output Power | 30 kW |
PV Input Power | 1000 V |
Battery Voltage | 24V |
Warranty | Warranty: |
Physical
Weight | 103.8 lbs (47.1 kgs) |
Dimension | 30.9 × 21.6 × 12.6 in (784 × 549 × 320 mm) |
Communication Interface | Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi |
S6-GC30K-LV-US and S5-GC60K-LV-US string inverters are suitable for three-phase commercial rooftop PV projects with grid voltage of 240 or 208VAC. Both string inverters have high input currents, which enable support of larger PV modules without compatibility issues, better supporting power density and flexibility. Wider operating voltages support operation for longer periods throughout the day, resulting in better system yields. Commissioning, operations and management are simplified through state-of-the-art design and monitoring. Optimized DC and AC connect ports reduce the cost of system cables. Tested to the harshest conditions, Solis’ success in the market and global top ratings are largely in part due to the quality we strive for. This product line is also certified PVRSS and UL3741 compliant, meaning that you can realize cost and time savings by supporting simpler installs.
Additional information
Weight | 68066226 kg |
---|
