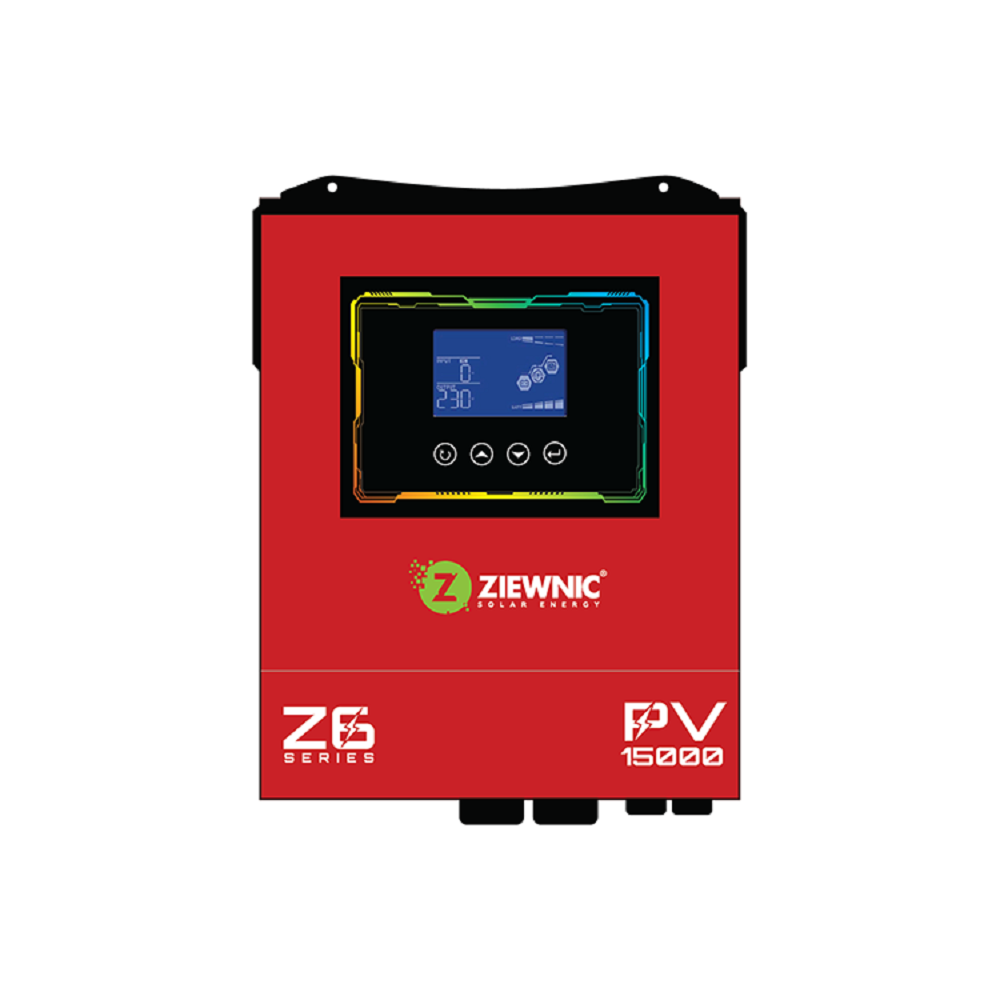

ZIEWNIC ENERGY STORAGE HYBRID EUROPEAN INVERTER – PV 15000
Roll over image to zoom in
In stock
12000W
- Introducing 1st time in Pakistan, single phase Inverters support three phase when installed in parallel
- 100% Pure Sine wave Inverter
- Touch LCD Button module with various communications
- PV and utility power the load at the same time can be set
- Energy generated record, load record history information and fault record
- Parallel operation up to 6 units
- Built-in two 15000W MPPTS, with wide input range: 90-450VDC
- Reserved communication port for BMS (RS485, CAN-BUS or RS323)
- Upgraded 6th generation smart and intelligent solar inverter
- Zero transfer time
- Battery Equalization/Compatible with Li-ion, LifePo4 and etc)
- Conformal Coating to Prevent from Dust and Humidity
- Output power factor PF-1.0
- Dual outputs, for smart load management
- PV input current increase to 27*2A
- Compatibale to utility main or generator units
- Replaceable fan design for ease of maintenance
- Support Peak-Valley Charge
- Efficiently Work with & with out battery
- Optional Wi-Fi interface with Android & IOS
- Supports USB On-the-Go Function
- Battery independent design
- Selectable high power charging current
- Overload and Short Circuit Protection
- Status indication with RGB lights
- Built in zero export
- 100% reverse grid feeding
- Built-in local Wi-Fi (10 Meter Range)
- European Design and Engineered in Taiwan
Inverter Datasheet
| Series | Z6 |
| Model | PV 15000 |
| Protection | Overload/Short Circuit protection |
| Rated Output Power | 12000W |
| PV Input Power | 15000W |
| Battery Voltage | 48V |
| Battery Ampere | 150A |
| Battery Type | Lhon/lifePo4 |
