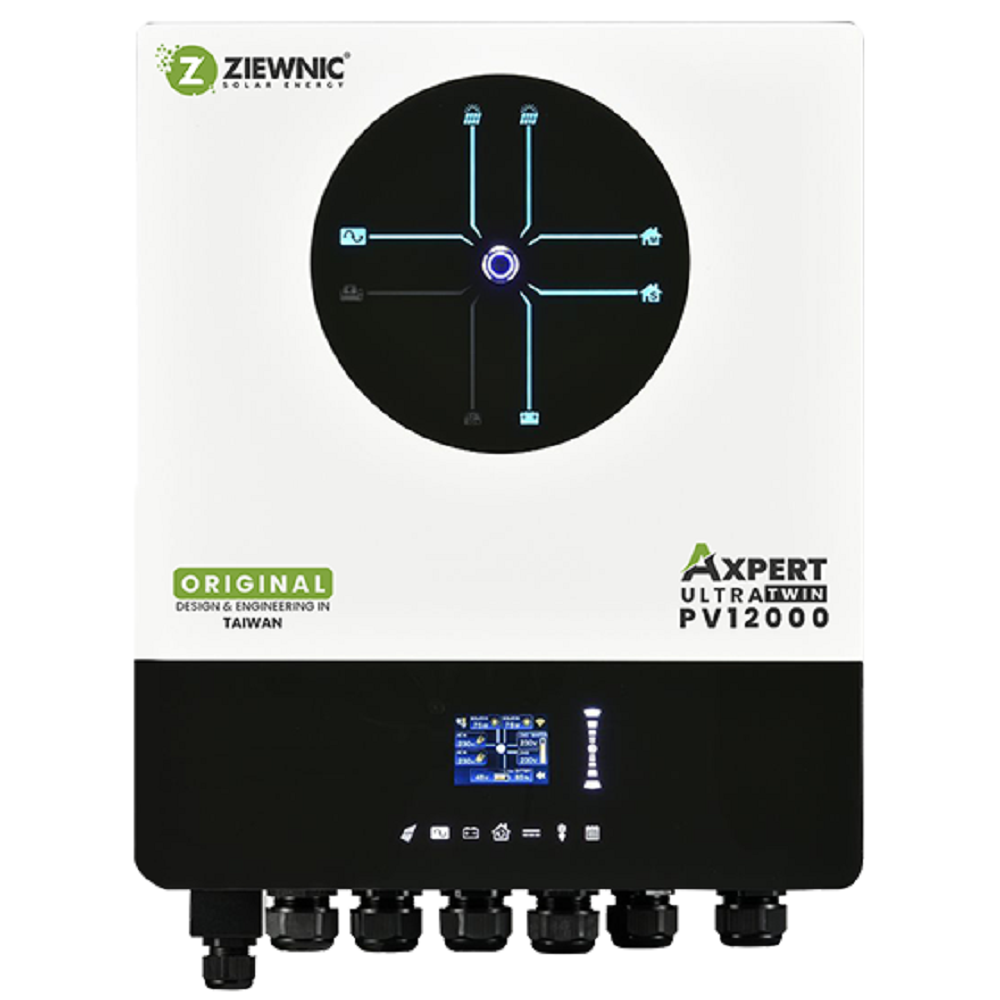

ZIEWNIC SOLAR ENERGY ULTRA INVERTER – PV12000
Roll over image to zoom in
In stock
11000VA/11000W
- INTRODUCING ORIGNAL DESIGN AND ENGINEERING IN TAIWAN
- TWO INDEPENDENT AC POWER SOURCES CONNECTED AND SWITCHED AUTOMATICALLY
- MAXIMUM CHARGING CURRENT 150A
- SUPPORTS USB ON-THE-GO FUNCTION
- RESERVED COMMUNICATION PORT FOR BMS (RS485, CAN-BUS OR RS232)
- BUILT-IN FEED-IN GRID FUNCTION
- BUILT-IN 2.8” COLORED LCD WITH SLIDE OPERATION
- BUILT-IN POWER STATUS LIGHTING INDICATORS
- SUPPORT EXTERNAL BTS (BATTERY TEMPERATURE SENSOR) DETECTION
- BUILT-IN WIFI WITH APP FOR REMOTE MONITORING AND OTA FIRMWARE UPGRADE
- ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
- CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
- DUAL AC OUTPUTS FOR SMART LOAD MANAGEMENT
- COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
- OVERLOAD & SHORT CIRCUIT PROTECTION
- SUPPORT OPTIONAL GFCI, RAPID SHUTDOWN, AFCI DETECTION
- BUILT-IN COMMUNICATION PORT FOR BMS
- BATTERY EQUALIZATION FUNCTION TO OPTIMIZE BATTERY PERFORMANCE AND EXTEND LIFECYCLE
- PARALLEL OPERATION WITH 6 UNITS
Inverter Datasheet
| Series | Axpert Ultra Twin |
| Model | PV12000 |
| Protection | Overload/Short Circuit protection |
| Rated Output Power | 11000VA/11000W |
| PV Input Power | 12000W |
| Battery Voltage | 48V |
| Battery Ampere | 150A |
| Battery Type | Lithium |
